Core Concepts of Power BI
TL;DR
Power BI has 5 building blocks: Power Query (clean data), Data Model (relate tables), DAX (calculations), Visualizations (charts), and Reports & Dashboards (share insights). Data flows left to right through this pipeline.

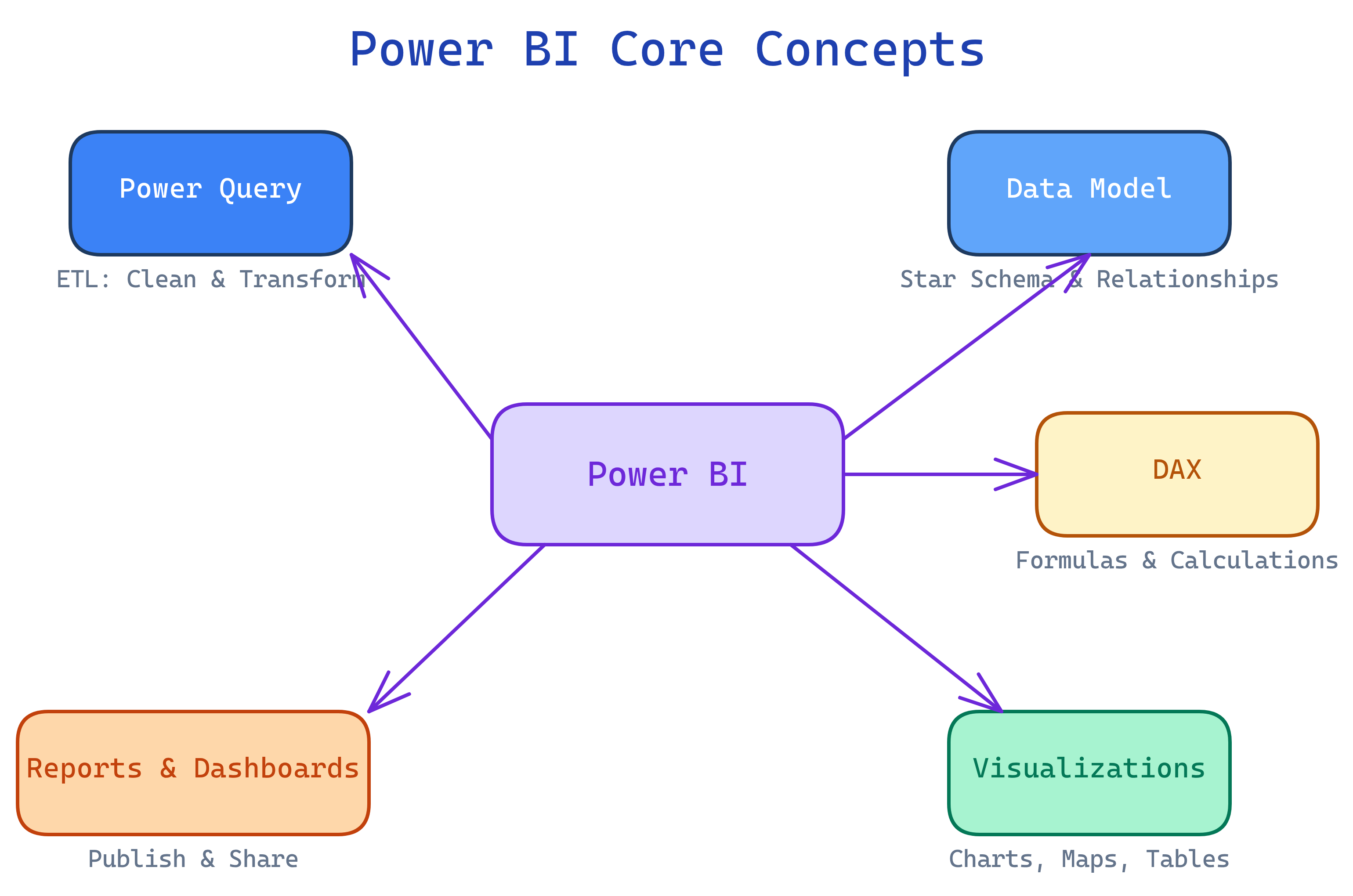

The Big Picture
Every Power BI project follows the same pipeline. Data enters on the left, insights come out on the right.
Explain Like I'm 12
Think of building a Power BI report like cooking a meal. Power Query is washing and chopping your ingredients. Data Model is organizing them on the counter by recipe. DAX is the actual cooking — mixing, measuring, timing. Visualizations are plating the food so it looks delicious. Reports & Dashboards are serving it to your guests.
Cheat Sheet
| Concept | What It Does | Where in Desktop |
|---|---|---|
| Power Query | Connect, clean, transform data | Home → Transform Data |
| Data Model | Define table relationships | Model view (left sidebar) |
| DAX | Write formulas for measures and columns | Modeling tab → New Measure |
| Visualizations | Drag fields onto chart types | Report view (canvas) |
| Report / Dashboard | Multi-page report; single-page dashboard | Desktop / Service |
The 5 Building Blocks
Power Query — Clean Your Data
Power Query is the ETL engine (Extract, Transform, Load) of Power BI. Before data hits your model, it passes through Power Query where you clean it up.
Common transformations:
- Remove columns — drop what you don't need
- Filter rows — remove nulls, errors, or irrelevant records
- Change types — fix dates that loaded as text, numbers as strings
- Merge queries — like a SQL JOIN between two tables
- Append queries — like UNION ALL, stacking rows from multiple tables
- Pivot / Unpivot — reshape data between wide and tall formats
- Add custom columns — computed columns using the M language
Golden rule: Do as much data cleaning in Power Query as possible. It runs once at refresh time, not on every user interaction. DAX calculations run on every click — so push work to Power Query whenever you can.
M language: Power Query uses "M" (Power Query Formula Language) under the hood. Each step you add in the UI generates an M expression. You can edit it directly in the Advanced Editor for complex transformations.
Data Model — Relate Your Tables
The data model defines how your tables connect. This is where Power BI becomes more than just charts — it becomes a relational analytics engine.
Star Schema (The Gold Standard)
The best data models follow the star schema pattern:
- Fact table (center) — contains the numbers you measure (sales amount, quantity, revenue). Usually the largest table.
- Dimension tables (around it) — contain the things you filter/slice by (date, product, customer, region). Usually smaller.
- Relationships — one-to-many from dimension to fact (e.g., one product appears in many sales rows)
Avoid many-to-many relationships unless you really need them. They create ambiguity in how filters propagate and can produce unexpected results. Stick to one-to-many relationships with a star schema.
Key Concepts
| Term | Meaning |
|---|---|
| Cardinality | 1:1, 1:*, *:* — how many rows match between tables |
| Cross-filter direction | Single (dimension filters fact) or Both (bidirectional) — prefer Single |
| Active relationship | The default relationship used for filtering (only one active per pair) |
| Inactive relationship | Exists but not used unless activated with USERELATIONSHIP() in DAX |
DAX — Write Calculations
DAX (Data Analysis Expressions) is the formula language for Power BI. It looks like Excel formulas but works on entire tables and columns, not individual cells.
Two types of DAX calculations:
| Type | When evaluated | Where stored | Use for |
|---|---|---|---|
| Measure | At query time (dynamic) | In the model, not in a column | Aggregations, KPIs, dynamic calculations |
| Calculated Column | At refresh time (static) | As a new column in the table | Row-level calculations, categorization |
// Measure: Total Sales
Total Sales = SUM(Sales[Amount])
// Measure: Year-over-Year Growth
YoY Growth =
VAR CurrentYear = [Total Sales]
VAR PriorYear = CALCULATE([Total Sales], SAMEPERIODLASTYEAR(Calendar[Date]))
RETURN DIVIDE(CurrentYear - PriorYear, PriorYear)Visualizations — Show the Story
Drag fields onto visuals to create charts. Power BI auto-aggregates measures and filters dimensions.
| Visual Type | Best For |
|---|---|
| Bar / Column chart | Comparing categories |
| Line chart | Trends over time |
| Pie / Donut chart | Part-of-whole (use sparingly) |
| Card / KPI | Single number or target vs actual |
| Table / Matrix | Detailed data, drill-down |
| Map | Geographic data |
| Slicer | Interactive filter controls |
| Scatter chart | Correlation between two measures |
Less is more. A report page with 3-4 focused visuals tells a better story than a wall of 15 charts. Every visual should answer a specific question.
Reports & Dashboards — Share Insights
| Feature | Report | Dashboard |
|---|---|---|
| Created in | Power BI Desktop | Power BI Service |
| Pages | Multiple pages | Single page |
| Data source | One dataset | Visuals pinned from many reports |
| Interactivity | Full (slicers, drill-through, cross-filter) | Click-to-navigate only |
| Best for | Deep analysis and exploration | At-a-glance KPI monitoring |
Workflow: Build a report in Desktop → Publish to Service → Pin key visuals to a Dashboard → Share the dashboard with stakeholders.
Test Yourself
Q: What does Power Query do in the Power BI pipeline?
Power Query connects to data sources and transforms (cleans, reshapes, merges) data before it loads into the data model. It's the ETL layer.
Q: What is a star schema?
A data modeling pattern with a central fact table (measures) surrounded by dimension tables (attributes you filter by), connected via one-to-many relationships.
Q: What is the difference between a measure and a calculated column?
A measure is evaluated dynamically at query time based on the current filter context. A calculated column is computed once at data refresh and stored as a static column in the table.
Q: Why should you do data cleaning in Power Query instead of DAX?
Power Query runs once at refresh time. DAX measures run on every user interaction (click, filter, slice). Pushing work to Power Query means faster reports.
Interview Questions
Q: Explain the difference between Import and DirectQuery mode.
Import: loads data into Power BI's in-memory VertiPaq engine. Fast queries, but data is a snapshot that needs scheduled refresh. DirectQuery: sends queries to the source database in real-time. Always current but slower performance. Choose Import for most scenarios; DirectQuery for real-time needs or when data is too large to import.
Q: What is filter context in DAX?
Filter context is the set of filters active when a DAX expression is evaluated. It comes from: (1) slicers and report filters, (2) visual axes (row/column headers), (3) cross-filtering from other visuals, (4) CALCULATE() which can modify filter context. Understanding filter context is the key to mastering DAX.
Q: What is a gateway in Power BI?
A gateway is a bridge between on-premises data sources and the Power BI cloud service. It enables scheduled data refresh from sources behind a firewall (SQL Server, file shares, etc.). There are two types: personal gateway (single user) and enterprise/standard gateway (shared, managed by IT).
Q: How would you optimize a slow Power BI report?
Key optimizations: (1) Reduce model size — remove unused columns/tables. (2) Use star schema instead of flat tables. (3) Move calculations to Power Query where possible. (4) Replace calculated columns with measures. (5) Avoid bidirectional cross-filtering. (6) Use variables in DAX to avoid recalculating. (7) Check Performance Analyzer in Desktop to find slow visuals. (8) Use aggregation tables for large datasets.
