AWS Core Concepts

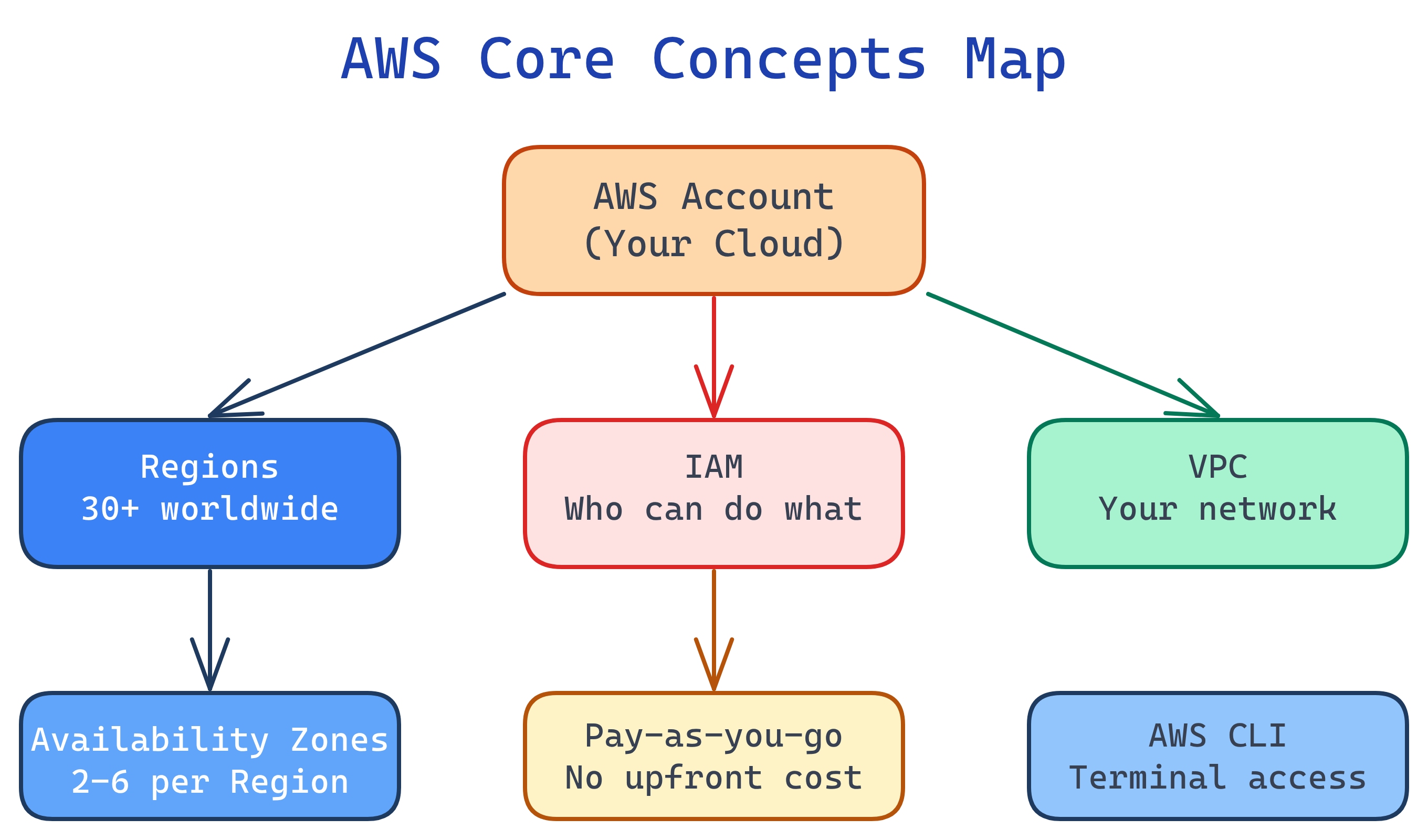

Concept Map

Here's how the core AWS building blocks relate to each other — every service you use sits on top of these foundations.

1. Regions & Availability Zones

AWS divides the world into Regions — independent geographic areas like us-east-1 (N. Virginia), eu-west-1 (Ireland), or ap-southeast-1 (Singapore). Each Region contains 2-6 Availability Zones (AZs), which are physically separate data centers connected by high-speed fiber.

# List all available regions
aws ec2 describe-regions --output table

# List AZs in your current region
aws ec2 describe-availability-zones --output table

2. IAM — Identity & Access Management

IAM controls who can access what in your AWS account. It's the first thing you set up and the most important security layer.

• Users — Individual people or service accounts
• Groups — Collections of users sharing the same permissions
• Roles — Temporary permissions assumed by users or services (e.g., an EC2 instance that needs to read S3)
• Policies — JSON documents defining allow/deny rules

{
  "Version": "2012-10-17",
  "Statement": [{
    "Effect": "Allow",
    "Action": "s3:GetObject",
    "Resource": "arn:aws:s3:::my-bucket/*"
  }]
}

3. VPC — Virtual Private Cloud

A VPC is your own private network inside AWS. Every resource you launch (EC2 instances, RDS databases, Lambda functions) lives inside a VPC. You control:

• Subnets — Subdivisions of your VPC (public vs. private)
• Route tables — Rules for where network traffic goes
• Internet Gateway — Connects public subnets to the internet
• NAT Gateway — Lets private subnets reach the internet (outbound only)

# Create a VPC with a /16 CIDR block (65,536 IPs)
aws ec2 create-vpc --cidr-block 10.0.0.0/16

# Create a public subnet in AZ us-east-1a
aws ec2 create-subnet --vpc-id vpc-abc123 \
  --cidr-block 10.0.1.0/24 \
  --availability-zone us-east-1a

4. Billing & the Free Tier

AWS charges for compute time, storage, and data transfer out. Data transfer in is free. Key billing concepts:

• On-Demand — Pay per second/hour, no commitment
• Reserved Instances — 1-3 year commitment, up to 72% discount
• Spot Instances — Bid on unused capacity, up to 90% discount (can be interrupted)
• Free Tier — 12 months of limited free usage (750 hrs EC2 t2.micro, 5 GB S3, etc.)

5. The AWS CLI

The AWS Command Line Interface lets you manage AWS services from your terminal. Install it, configure credentials, and you can script anything.

# Install AWS CLI v2 (macOS/Linux)
curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
unzip awscliv2.zip && sudo ./aws/install

# Configure with your access key
aws configure
# AWS Access Key ID: AKIA...
# AWS Secret Access Key: wJal...
# Default region name: us-east-1
# Default output format: json

# Test it
aws sts get-caller-identity
